Aseptic Diaphragm Valves with Tri-clamp Ends, Pneumatic Mini Type

Reference: SV-4MIPC
Sizes available: 1/4", 3/8", 1/2", 3/4"
End connection: tri-clamp, or butt-weld
Body material: ASTM A351 CF3M (1.4435) as default, AISI 316L Forged Body (1.4435), ASME BPE 316L, or 1.4435-BN2 (316L) Fe<0.5% Forged Body
Seat: EPDM+PTFE
Max. working pressure (default): Normally closed, EPDM=87psi (6bar), PTFE=65psi (4.5bar) / Normally open and double action, EPDM=116psi (8bar), PTFE=87psi (6bar)
Max. working pressure (option): Normally closed EPDM 116psi (8bar), PTFE 87psi
Temperature range: -22°F to 302°F/ (-30 to 150℃), or higher upon request
Operation: stainless pneumatic actuator, NC/NO/AA type for choose from
Actuator air pressure: 58-102psi (4-7bar)
Air supply port: M5
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 25µin as default.
INQUIRY

APPLICATION

SV-4MIPC series are pneumatic type aseptic diaphragm valves with tri-clamp ends and plastic or stainless actuators. The valves with compact design are excellent for flow control as well as for open/close duties. It is mainly used for sampling, biological system, laboratory engineering, etc.

TECHNICAL DATA

Body MaterialASTM A351 CF3M (1.4435) as default, AISI 316L Forged Body (1.4435), ASME BPE 316L, or 1.4435-BN2 (316L) Fe<0.5% Forged Body
Seat Material  (diaphragm)EPDM+PTFE
End Connectionsbutt-welded, sanitary tri-clamp
Max. Working PressureNormally closed EPDM 87psi (6bar), PTFE 65psi (4.5bar) as default
Normally closed EPDM 116psi (8bar), PTFE 87psi (6bar) as option
Normally open and double action EPDM 116psi (8bar), PTFE 87psi (6bar)
Working Temperature-22°F to 302°F/-30 to 150℃ (Depending on Seal Material) (Stainless Actuator)
-22°F to 266°F/-30 to 130℃ (Depending on Seal Material) (Plastic D27Actuator)
Internal FinishRa 16 ~ 32µin (0.4 ~ 0.8µm), Ra 25µin as default.
External FinishRa 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
Pneumatic Actuator Typesplastic actuator or stainless actuator
Actuator Operation TypesNormally Closed (NC) – Air to open and spring to close;
Normally Open (NO) – Air to close and spring to open;
Air to Air (AA) – Air to open, air to close.
Actuator air pressure58 ~ 102psi (4 ~ 7bar)
Units for intelligent control and indicationProximity Switches (position sensor)
Limit Stroker
C-top control
IL-top control (Positioner)

DESIGN FEATURES

Design Features

● Compact design for limited space installation
● Sizes available 1/4″-3/4″, DN6-DN15
● Forged or casted body 1.4404/316L
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4)
● Manual handle, pneumatic actuator are interchangeable

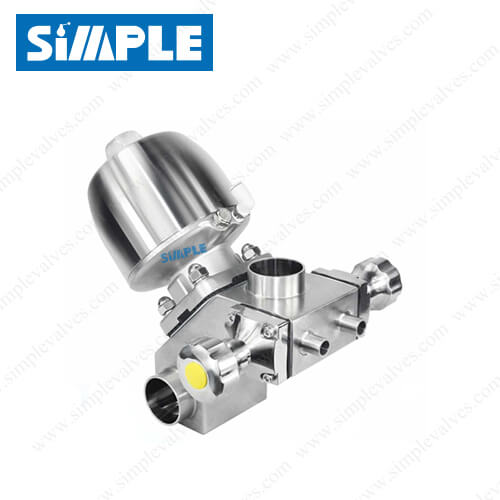

● A wide selection of body types for choose from, U type/T type/Multiport
● 100% hydraulic tested / 100% inspected
● Standards: ASME BPE, 3A, DIN, ISO / IDF
● Certificates: 3A, FDA, PED 97/23/EC

Operations

● Handles
Plastic handwheel
Stainless handwheel
● Actuators
Pneumatic plastic actuator
Pneumatic stainless steel actuator
Electric actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Limit Stroker
C-top control
IL-top control (Positioner)

SELF-EMPTYING INSTALLATION

SELF-EMPTYING INSTALLATION

DIMENSIONAL DRAWINGS
