Sanitary Union Sight Glass with Lighting + Wiper
Reference: SV-12U
Sizes available: 1"-6" (DN25-DN150)
Body Material: AISI 304 (1.4301), AISI 316L (1.4404)
Glass Material: PYREX glass
Seal Material: EPDM, Silicone, Viton (FPM)
End connection: SMS union
Max. working pressure: Vaccum to 145psi (10bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default
INQUIRY
Sizes available: 1"-6" (DN25-DN150)
Body Material: AISI 304 (1.4301), AISI 316L (1.4404)
Glass Material: PYREX glass
Seal Material: EPDM, Silicone, Viton (FPM)
End connection: SMS union
Max. working pressure: Vaccum to 145psi (10bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default
APPLICATION

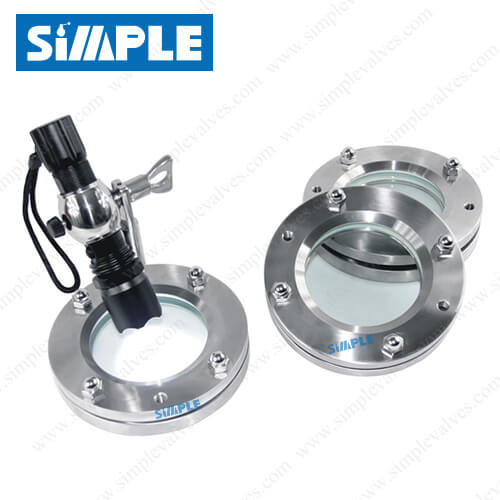

SV-12U series Sanitary Union Sight Glass, is with transparent circular glass and threaded nozzle with the welded neck. It can be assembled with lights/lamps plus wiper, it is used for viewing the biologic reactor, blender in laboratory, filter, processing container, pipeline and other closed container, in pharmaceutical, food & beverage processing, brewery, dairy industries, etc.
TECHNICAL DATA
| Body Material | AISI 304 (1.4301), AISI 316L (1.4404) |
| Glass Material | PYREX glass |
| Seat Material | EPDM, Silicone, Viton (FPM) |
| Max. Working Pressure | Vaccum to 145psi (10bar) |
| Working Temperature | 14 ~ 248°F (-10 ~ 120°C) |
| Internal Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
| External Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
| End Connections | butt-weld, tri-clamp, union, flange |
DESIGN FEATURES
Design Features
● No retention, zero dead angle keeps free from contamination.
● Hygenic design, waterproof, explosion-proof.
● Available with lighting and cable, power supply AC110V/220V, DC24V.
● Precast cable 2M, precast pinhole plugs
● Full port design
● 360° viewing
● Both vertical and horizintal positions can be installed
● Standard: IDF, BS, RJT, SMS, DIN.
● Easy assembly/disassembly
