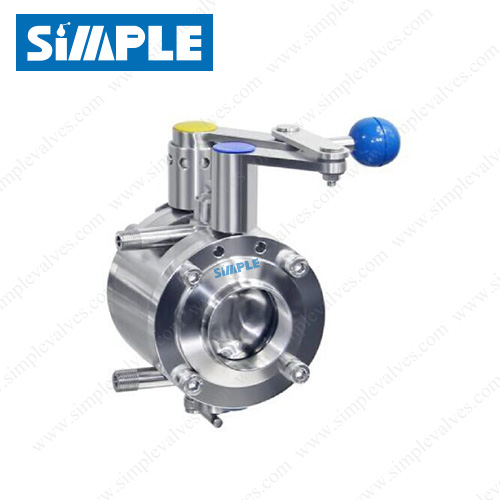

Pharmaceutical Butterfly Valves, Sanitary Pneumatic Mixproof Butterfly Valve (Type B)

Reference: SV-1MPBPW
Sizes available: 2"-4" (DN50-DN100)
End connection: butt-weld, tri-clamp, etc.
Body & Disc: AISI 304 or 316L, (EN1.4301/EN1.4404)
Seat: EPDM, VMQ (Silicone) or Viton (FPM), FDA approved.
Max. working pressure: 145psi (10bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C) as default, higher available upon request.
Operation: pneumatic actuator, 304SS, vertical type, NC/NO/AA.
Actuator air pressure: 58 ~ 102psi (4 ~7bar)
Surface treatment: Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
INQUIRY

APPLICATION

SV-1MPBPW (B type) series is a pneumatic operated Sanitary Mixproof Butterfly Valve with double seat design. As a process element for the sepatation of media, it is widely used in variety of applicaitons. AV-1MPBPW butterfly valve operates automatically.

The B type double seat butterfly valve has two discs, it can be used in food-processing, pharmaceutical and chemical industries. Leakage butterfly valve offers an easy and safe separation of products and prevent accidental mixing in case of gasket failure. The most used applications are the ones that require safe separation of the product and CIP solutions in a single point (not in manifolds), or at the end of a manifold (e.g. CIP return) or entry of a CIP solution in a tank (through a sprayball).

Pneumatic actuator with IL-TOP available for intelligent control, contact factory for more details.

TECHNICAL DATA

Body Material AISI 304 or 316L (1.4301 / 1.4404)
Other Steel Parts AISI 304
Seat Material Silicone (default)
Seat Options EPDM or Viton (FPM)
Max. Working Pressure 145psi (10bar) for DN25/1″-DN100/4″
116psi (8bar) for DN125/5″-DN150/6″
73psi (5bar) for DN200/8″-DN300/12″
Working Temperature EPDM: 14 ~ 248°F (-10 ~ 120°C)
Silicone: -58 ~ 356°F (-50 ~ +180°C)
Viton (FPM): -22 ~ 428°F (-30 ~ +220°C)
Sterilization Temperature 150°C (302°F), Max. 20 min
Internal Finish Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
External Finish Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
End Connections: butt-welded, sanitary tri-clamp, male and female threaded, flanged, I-line or others upon request.
Pneumatic Actuator Types Normally Closed (NC) – Air to open and spring to close;
Normally Open (NO) – Air to close and spring to open;
Air to Air (AA) – Air to open, air to close.
Actuator air pressure 58 ~ 102psi (4 ~ 7bar)
Electric Actuator Types ON/OFF Type
Intelligent Modulating Type
Units for intelligent control and indication Proximity Switches (position sensor)
Limit Switch
C-top control
IL-top control (Positioner)

DESIGN FEATURES

Design Features

● All stainless construction, forged 304 or 316L grade stainless steel body & disc.
● FDA-approved seat materials: EPDM, Silicone, Viton (FPM).
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4)
● Manual handle, pneumatic actuator and electric actuator are interchangeable
● A wide selection of different end connections
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE
● Certificates: 3A, FDA, PED 97/23/EC, ISO9001/2008
● Suitable for low and medium viscosity fluids
● 100% hydraulic tested / 100% inspected
● Repair Kits available consisting of seat and bushings

Operations

● Actuators
Pneumatic stainless steel actuator (vertical type)
Pneumatic aluminum actuator (horizontal type)
Electric actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Limit Switch
C-top control
IL-top control (Positioner)
● Handles
Pull handle, three or four positions
Multipositioning handle with plastic cover
Multipositioning handle with stainless steel cover
Lockable multi-position handle

DIMENSIONAL DRAWINGS
