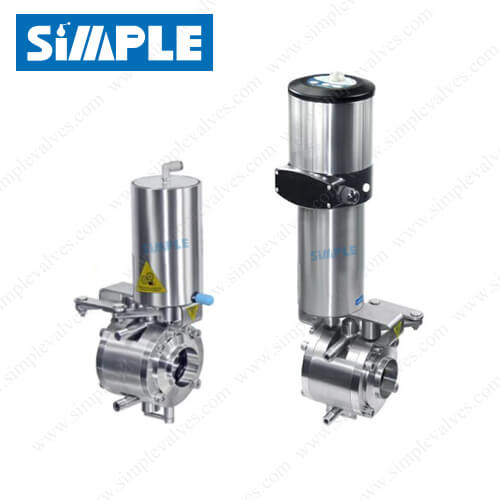

Sanitary Butterfly Valve for Powder, Manual or Pneumatic Operation

Reference: SV-1PB
Sizes available: 1" to 4" (DN25 - DN100)
End connection: Butt-weld, Tri-clamp
Body & Disc: AISI 304 or 316L, (EN1.4301/EN1.4404)
Seat: EPDM, VMQ (Silicone) or Viton (FPM), FDA approved.
Max. working pressure: 145psi (10bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C) as default, higher available upon request.
Operation: manual handle or pneumatic head
Surface treatment: Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
INQUIRY

APPLICATION

SV-1PB series is a sanitary butterfly valve specially designed for powder products, which is widely used in process piping systems for isolation and control. AV-1PB butterfly valve operates manually or automatically.

TECHNICAL DATA

Body Material AISI 304 or 316L (1.4301 / 1.4404)
Other Steel Parts AISI 304
Seat Material Silicone (default)
Seat Options EPDM or Viton (FPM)
Max. Working Pressure 145psi (10bar) for DN25/1″-DN100/4″
116psi (8bar) for DN125/5″-DN150/6″
73psi (5bar) for DN200/8″-DN300/12″
Working Temperature EPDM: 14 ~ 248°F (-10 ~ 120°C)
Silicone: -58 ~ 356°F (-50 ~ +180°C)
Viton (FPM): -22 ~ 428°F (-30 ~ +220°C)
Sterilization Temperature 150°C (302°F), Max. 20 min
Internal Finish Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
External Finish Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
End Connections butt-welded, sanitary tri-clamp, male and female threaded, flanged, I-line or others upon request.
Handle Types 4-position Pull handle; multi-position handle with plastic cover or in pure stainless steel, lockable multiposition handle.

DESIGN FEATURES

Design Features

● All stainless construction, forged 304 or 316L grade stainless steel body & disc.
● FDA-approved seat materials: EPDM, Silicone, Viton (FPM).
● Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4)
● Manual handle, pneumatic actuator and electric actuator are interchangeable
● A wide selection of different end connections
● Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE
● Certificates: 3A, FDA, PED 97/23/EC, ISO9001/2008
● Suitable for low and medium viscosity fluids
● 100% hydraulic tested / 100% inspected
● Repair Kits available consisting of seat and bushings

Operations

● Handles
Pull handle, three or four positions
Multipositioning handle with plastic cover
Multipositioning handle with stainless steel cover
Lockable multiposition handle
● Actuators
Pneumatic stainless steel actuator (vertical type)
Pneumatic aluminum actuator (horizontal type)
Electric actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Limit Switch
C-top control
IL-top control (Positioner)
