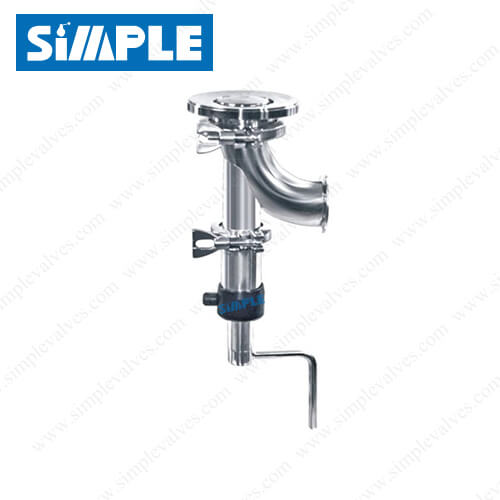

Tank Bottom Ball Valve, Sanitary Design, Manual Type

Reference: SV-2MTBC
Sizes available: 1.5" to 3", DN40 to DN80
End connection: Tank Bottom
Body & Disc: AISI 304 or 316L, (EN1.4301/EN1.4404)
Seat: Encapsulated Teflon (PTFE)
Max. working pressure: 145psi (10bar)
Temperature range: 14°F ~ 248°F (-10°C ~ 120°C) as default, higher available upon request.
Operation: Manual Handle
Surface treatment: Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
INQUIRY

APPLICATION

SV-2MTBC series is a manual type tank bottom ball valve. The ball valve is specially designed for pressure vessels and tanks for emptying and draining. Fully PTFE encapsulated ball core and self-sealing compensation design promise high pressure, high temperature resistance, small torque and long service life. It meets CIP / SIP cleaning and sterilization, ideal for most sanitary systems like biopharmaceutical service, food and beverage, dairy, chemical, etc.

TECHNICAL DATA

Body Material AISI 304 or 316L (1.4301 / 1.4404)
Other Steel Parts AISI 304
Seat Material Teflon (PTFE)
Max. Working Pressure 145psi (10bar)
Working Temperature Teflon (PTFE): -4 ~ 302°F (-20 ~ 150°C)
Internal Finish Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
External Finish Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
End Connections butt-welded, sanitary tri-clamp, or others upon request.

DESIGN FEATURES

Design Features

● Fully encapsulated ball core by Teflon (PTFE).
● No stranded residue, high clean, meet the requirement of CIP
and SIP for sterilization/cleaning.
● The highest pressure can reach 435psi (30 bar), heat resistance
of 356°F (180°C).
● Precision stainless steel balls reduce torque and friction losses
while extending seat life.
● Available with variety of operations, such as lockable manual
handle, pneumatic actuators in horizontal or vertical type, electric
actuators. Intelligent control units like positioner, C-TOP, position
sensors can be assembled for automatic control system.

Operations

● Manual Handle
● Actuators
Pneumatic aluminum actuator (horizontal type)
Electric actuator
● Units for intelligent control and indication:
Proximity Switches (position sensor)
Limit Switch
C-top control
IL-top control (Positioner)

DIMENSIONAL DRAWINGS

Drawing 14 - Sanitary Tank Bottom Ball Valve, Manual Type
