Sanitary Butterfly Valves

SIMPLE SV-1 series Sanitary Butterfly Valves mostly apply to piping systems for control and isolation. They can operate both automatically and manually. They act as the best choice for the on/off valves for various industries including dairy and brewing.

● Sanitary butterfly valves are provided in sizes of 1/2″ to 12″.
● The end connection can be easily butt-welded, sanitary tri-clamp, threaded, flanged, I-line, and others upon request.
● The various stainless constructions include forged 304, 304L, 316 and 316L grades stainless steel body and disc.
● Seat materials are FDA approved such as EPDM, Silicone and Viton (FPM).
● Manual handle, pneumatic actuator and electric actuator are interchangeable.
● Availability of the intelligent units for indication and control such as Proximity Switches (position sensor), C-TOP control, IL-TOP control (Positioner).

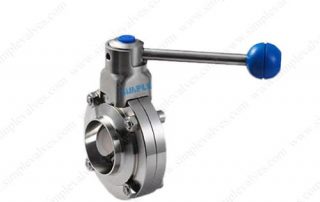

Sanitary Stainless Steel Butterfly Valves, Butt-weld Ends, Pull Handle

Reference: SV-1MW
Sizes available: 1/2" to 12" (DN10-DN300)
End connection: butt-weld / butt-weld

Hygienic Butterfly Valve with Butt-weld Ends, Pneumatic Operated

Reference: SV-1PW
Sizes available: 1/2" to 12" (DN10-DN300)
End connection: butt-weld / butt-weld

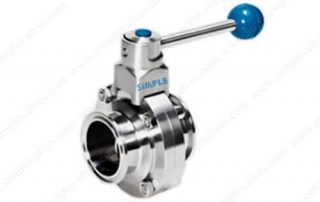

Sanitary Tri Clover Butterfly Valve, Manual Type, Pull Handle

Reference: SV-1MC
Sizes available: 1/2" to 12" (DN10 - DN300)
End connection: Tri-clamp / Tri-clamp

Sanitary Tri Clamp Butterfly Valve, Manual Type, SS Trigger Handle

Reference: SV-1MC-SL
Sizes available: 1/2" to 6" (DN10 - DN150)
End connection: Tri-clamp / Tri-clamp

Sanitary Manual Butterfly Valve with Stainless Lockable Handle

Reference: SV-1M-LH
Sizes available: 1/2" to 4" (DN10 - DN100)
End connection: butt-weld, tri-clamp, thread, flange, or upon request.

Sanitary Butterfly Valve with Fine Tuning Handwheel, Fine Adjustable

Reference: SV-1M-FT
Sizes available: 1/2" to 4" (DN10 - DN100)
End connection: butt-weld, tri-clamp, thread, flange, or upon request.

Sanitary Pneumatic Butterfly Valve with Tri-clamp Ends, NC/NO/AA Operated

Reference: SV-1PC
Sizes available: 1/2" to 12" (DN10 - DN300)
End connection: Tri-clamp / Tri-clamp

Sanitary Clamp Butterfly Valve with Proximity Switches (Sensors), Pneumatic Type

Reference: SV-1PC-PS
Sizes available: 1/2" to 12" (DN10 - DN300)
End connection: Tri-clamp / Tri-clamp

Sanitary Pneumatic Butterfly Valve with F-TOP Position Feedback Device

Reference: SV-1PC-V-F
Sizes available: 1/2" to 12" (DN10 - DN300)
End connection: tri-clamp / tri-clamp

Sanitary Butterfly Valve with Pneumatic Actuator and C-TOP Control Module

Reference: SV-1PC-C
Sizes available: 1/2" to 12" (DN10 - DN300)
End connection: tri-clamp / tri-clamp

Sanitary Tri Clover Air Actuated Valves with IL-TOP (Electropneumatic Positioner)

Reference: SV-1PC-V-IL
Sizes available: 1/2" to 12" (DN10 - DN300)
End connection: tri-clamp / tri-clamp

Air Actuated Sanitary Butterfly Valve with Horizontal Actuator, NC/NO/AA Types

Reference: SV-1PC-H
Sizes available: 1/2" to 12" (DN10 - DN300)
End connection: butt-weld, tri-clamp, thread, flange, or upon request.

Sanitary Pneumatic Butterfly Valve with Horizontal Actuator + Proximity Switches

Reference: SV-1PC-H-PS
Sizes available: 1/2" to 12" (DN10 - DN300)
End connection: butt-weld, tri-clamp, thread, flange, or upon request.

Sanitary Pneumatic Butterfly Valve with Automated Package, Solenoid+Limit Switch+Air Filter Regulator

Reference: SV-1PC-H-SLR
Sizes available: 1/2" to 12" (DN10 - DN300)
End connection: butt-weld, tri-clamp, thread, flange, or upon request.

Pneumatic Actuated Sanitary Butterfly Valve, Horizontal Actuator with IL-TOP-S (Square Positioner)

Reference: SV-1PC-H-ILS
Sizes available: 1/2" to 12" (DN10 - DN300)
End connection: butt-weld, tri-clamp, thread, flange, or upon request.

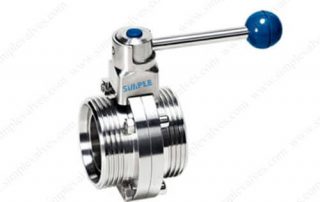

Threaded End Butterfly Valve, Sanitary Design, Manual Type

Reference: SV-1MT
Sizes available: 3/4" to 6" (DN10 - DN150)
End connection: Male or Female Threaded

Threaded Butterfly Valve, Sanitary Design, Pneumatic Type

Reference: SV-1PT
Sizes available: 3/4" to 6" (DN10 - DN150)
End connection: Male or Female Threaded

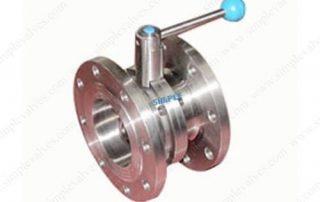

Stainless Steel Sanitary Butterfly Valve with Flanged Ends, Pull Handle

Reference: SV-1MF
Sizes available: 3/4" to 10" (DN15 - DN200)
End connection: Flange / Flange

Stainless Steel Butterfly Valve with Flange Ends, Pneumatic Type

Reference: SV-1PF
Sizes available: 3/4" to 10" (DN15 - DN200)
End connection: Flange / Flange

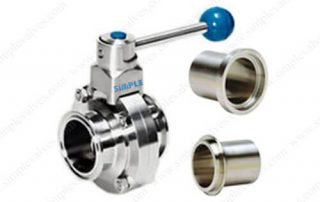

Sanitary Valves Butterfly with I-Line Ends, Manual Type

Reference: SV-1MI
Sizes available: 1" to 6"
End connection: I-LINE / I-LINE (14WI-CB or 15WI-CB)

6 Sanitary Butterfly Valve with I-line Ends, Pneumatic Type

Reference: SV-1PI
Sizes available: 1" to 6"
End connection: I-LINE / I-LINE (14WI-CB or 15WI-CB)

Sanitary Electric Actuated Butterfly Valve, 110V/220V/24V Options

Reference: SV-1EC
Sizes available: 1/2" to 12" (DN15 - DN300)
End connection: butt-weld, tri-clamp, thread, flange, or upon request.

Sanitary Mixproof Butterfly Valve, Single Seat, Manual Operation (Type A)

Reference: SV-1MPAMW
Sizes available: 2"-4" (DN50-DN100)
End connection: butt-weld, tri-clamp, etc.

Ultra Sanitary Butterfly Valve with Leakage Paths (Type A), Pneumatic Type

Reference: SV-1MPAPW
Sizes available: 2"-4" (DN50-DN100)
End connection: butt-weld, tri-clamp, etc.

Sanitary Double Seal Mixproof Butterfly Valve (Type B), Double Seat Design, Manual Type

Reference: SV-1MPBMW
Sizes available: 2"-4" (DN50-DN100)
End connection: butt-weld, tri-clamp, etc.

Pharmaceutical Butterfly Valves, Sanitary Pneumatic Mixproof Butterfly Valve (Type B)

Reference: SV-1MPBPW
Sizes available: 2"-4" (DN50-DN100)
End connection: butt-weld, tri-clamp, etc.

Sanitary Butterfly Valve for Powder, Manual or Pneumatic Operation

Reference: SV-1PB
Sizes available: 1" to 4" (DN25 - DN100)
End connection: Butt-weld, Tri-clamp

All You Need to Know About Sanitary Butterfly Valves

Many industries manufacture sanitary butterfly valves. They come in different types. This is mainly to suit the needs of clients. In other terms, they are called the hygienic butterfly valve.

To get the best out of the valves, they must be of top quality. This reflects on the material used to make it. This way, it will not rust or malfunction. Also, the valves should be environmentally friendly. Then, you can use it without damaging the environment.

Read on to know more about the sanitary butterfly valves.

Sanitary Butterfly Valves - All You Need to Know

What Are Sanitary Butterfly Valves?

To begin with, they are the quarter-turn type of valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. They are also called the hygienic butterfly valves. They are stainless steel constructed which guarantees a lot of durabilities. It functions by controlling and isolating fluid flow.

They have different kinds of sanitary end connections, which can be the tri-clamp, butt-weld, thread, I-line, and flange, etc.

Uses

Sanitary butterfly valves are used in many industries. They help to regulate the liquid flow on various occasions.

They are used in fields such as, dairy, pharmaceuticals, cosmetics, and chemical processing. Also, they do well in food, beverages, beer, and winemaking.

Additionally, hygienic butterfly valves function in water filtration, textiles, fragrance, and flavor. The ink and paint industries utilize the work of a hygienic valve.

The valves are fully automated to perform as expected. They start the liquid and stop the flow through a pipe. It is, therefore, very effective and efficient.

As part of the procedure, the equipment has to be inspected. Sanitary and quality assurance bodies take part in the activity. This is to make sure that the valves measure up to health standards. This protects people from consuming harmful substances.

Sanitary Butterfly Valves Design

The body material is made of 300 series stainless steel. This means that the valve is of top-notch standards.

  • Hence, it is resistant against any heat and corrosion.

  • It will not wear out easily. This makes it the best to be used for food and other drinks.

  • They don’t rust at all making them clean and fit for use. The make is ideally for the disc and the body.

As for the seat, the butterfly valve has, silicone or EPDM. It also comprises of Viton.

  • The seal is heat resistant, which elevates the performance.

  • The best part about it is that they have been approved by the FDA. Thus, they are safe to be used in all industries.

  • This is particular to the pharmaceuticals and food industries. The materials are all user-friendly and secure.

Valves Sizes

Hygienic butterfly valves come in an array of sizes.

  • For instance, tri-clamp is widely known by people. It measures 1/2 inches to 12 inches.
  • The butt-weld has dimensions of 1/2 inches to 12 inches.
  • As for the thread, it measures between 1 to 6 inches.
  • The flange is about 1/2 to 10 inches in size. Finally, the I-Line end is from 1 to 6 inches as well.

Pressure Ranges

Sanitary butterfly valves work in a number of pressure points. First off, they function at certain psig/bars per diameter nominal. They are as follows:

  • 145psig about 10bar for DN25/1″-DN100/4″
  • 116psig or 8bar for DN125/5″-DN150/6″
  • 73psig approximately 5bar for DN200/8″-DN300/12″

Temperature Ranges

Sanitary butterfly valves operate under particular temperatures. With the different seals, their temperature ranges are diverse. Have a look at how they operate. Some seals can handle high temperatures while others handle them lower.

  • For the EPDM seal, the sanitary valve works at about 14°F to 248°F. In degrees Celsius it is from -10°C to 120°C.
  • Valves sealed with Silicone do well in -22°F to 356°F. This is approximate -30°C to 180°C.
  • The Viton-sealed hygienic valves work at 23°F to 356°F or about -5°C to 220°C.
  • Teflon valves are great performers at -4°F to +482°F. This translates to -20°C to 250°C.

How They Function

The manual operation is usually the common one.

Sanitary butterfly valves have a pull handle. It works in 4 different positions. Thus, they are versatile and flexible.

SIMPLE VALVES also pride in a lever handle that has 6-12 positions.

This heightens the performance level. In addition to that, it has a lockable handle. This means that there will be no liquid overflow. Similarly, the hand wheel turns in a smooth manner. It is adjustable for the valve to work optimally.

tri-clamp butterfly valve

Actuators

The hygienic valves have a pneumatic actuator. It works in three ways, which are NC (normally closed), NO (normally closed) and AA (air to air). The normally closed function makes opening up by air, closing by spring. The normally open makes opening up by spring, closing by air input. The air to air function works by air for both opening up and closing. The vertical type is manufactured from 304SS material. The horizontal kind is made of aluminum.

The electric actuator can be turned on and off. Also, it has a signal feedback option, which is convenient. It sends back feedback on how the valve is working. They work by converting energy and make the valves rotate. This way, the actuators power up the entire system.

The actuators are vital for the operation of sanitary butterfly valves. They act as motors that cause the movement of the machine. Sanitary valves that have both functions are great. This is because they make work easier. The actuators are automated. On that note, they do the job faster than the manual function. Although it is by hand, it does a good job too. It is easy to operate due to its flexibility. Consequently, they complement each other.

Surface Finish

The roughness is at Ra 32 microinches, and 0.8 micrometers as default. SIMPLE VALVES surface finish reaches up to Ra 16μin (0.4μm) as best. This shows that the surface is of quality. It will, therefore, not get any scratches.

Overall, the hygienic valves perform well. They meet the FDA and USDA requirements. This shows that when used for production, they already meet safety precautions. You can’t find pieces of metal in the food or cosmetics. To top it up, the clothes you wear are metal-free.

Conclusion

To sum up, sanitary butterfly valves are vital in many industries. They are of world-class quality since they have been approved. Accordingly, they are of great worth. They function using the actuators and manual handles. They come in diverse sizes and designs.

All in all, they have different seals. Each of them has a particular pressure and temperature range. The stainless steel stands out in the market. They are non-corrosive, which makes them durable.
